Viewing Thumbnail Video

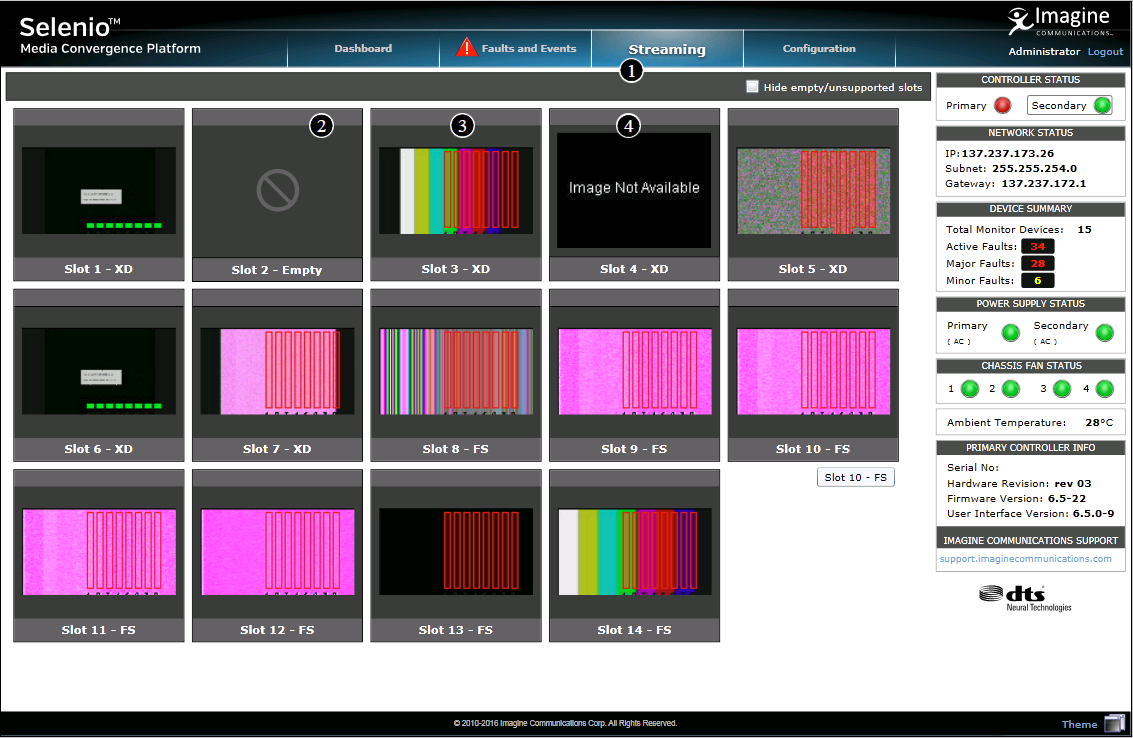

Streaming View Displaying Thumbnails

Thumbnail Display Key

Normally, SEL-MCP3 displays one thumbnail per slot displayed at a resolution of 128 x 96, and updating at approximately one frame every two seconds. SEL-MCP3 displays up to four thumbnails per SEL-J2K1 ENC or DEC module, depending on how many channels are configured on that module. In this case, each indicates the channel it belongs to.

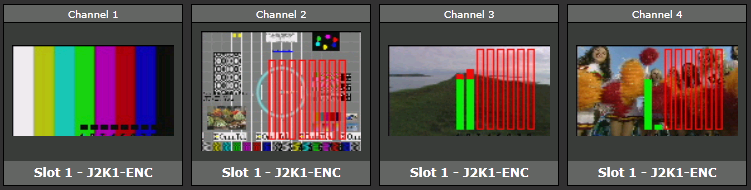

SEL-J2K1 ENC With Four Configured Channels

When viewing thumbnails, the border of the thumbnail indicates if the source module has a fault. A red border indicates a major fault, and a yellow border indicates a minor fault.

If all slots in the frame are not currently occupied, or are not actively processing video, click Hide Empty/Unsupported Slots to only view frames that actively display video. If this is selected and a module is ejected its thumbnail disappears from the page. If the module is then reinserted, or if a new module is inserted into the frame, when it has viewable content, the thumbnail for that module/slot will appear.

A thumbnail has the following components:

Thumbnail with Rollover Buttons Visible

Roll the mouse over the slot number of the thumbnail to see the module’s custom name, if one has been assigned. See Adding or Changing the Name of a Module  for more information.

Thumbnails update approximately once every two seconds.
