Live Events

The Live Events log lists events that have occurred since the session began (since the SEL-MCP3 web page was opened). Events include:

  • Modules being inserted or removed in the frame
  • Connection failover
  • System preset failing to load part of a preset
  • The front cover of the frame being removed or replaced

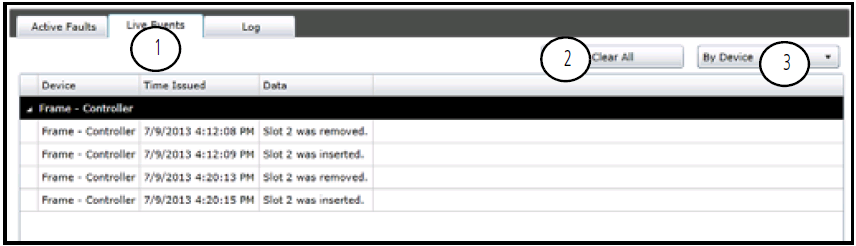

Live Events List Key

Key

Description

1

Click the tab to view Live Events.

2

Clear All empties the Live Events list.

3

Toggles All Faults or By Device (which displays all faults grouped by device)

Live Events List Column Headers

Column Header

Function

Device

The module name (and custom name, if created) of the module that originated the fault

Time Issued

The point at which the fault was triggered (some conditions must be in an activated state for a period of time before the Fault is triggered)

Data

More information about the fault provided by the triggering module; this field can be empty

To view events that took place prior to your web page being opened, click the Log (see Log  for more information). You can sort by the Fault/Event Name column to see the events.
