Installation, Operation, and Specifications

Installation, Operation, and Specifications

The SEL-FR3 Selenio Frame supports primary and secondary (redundant) power supplies, control modules, genlock input boards, and Ethernet boards. It has the capacity for 14 processing modules, and includes one GPI In/Out module.

The processing modules communicate to the control modules via a 100Base-T Ethernet network, while a low-level communication bus (midplane interface) provides module discovery, power down, command, and control for application modules. The SEL-FR3 also supports an internal 1000Base-T GigE Data network between all processing modules and control modules, and SDI internal routing (up to 3 Gb/s) between application modules and controller modules.

The front panel houses four fans and a display board. Air cooling moves from the front to the back.

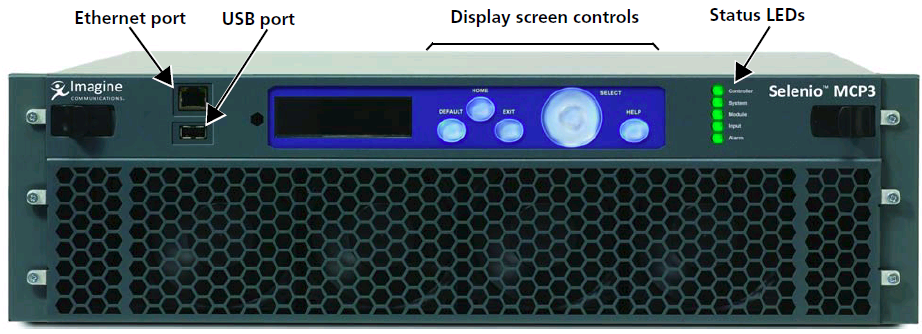

Front View of Selenio Frame (Shown with Local Control Panel)

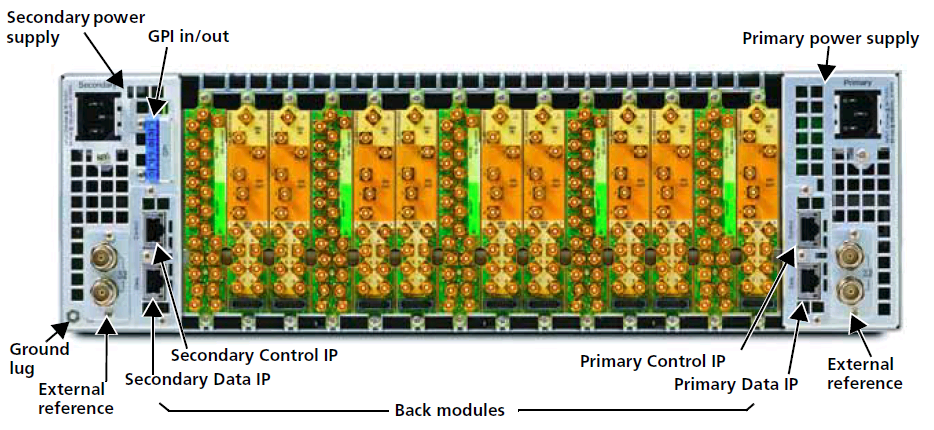

Rear View of Selenio Frame (Shown with SELOPT-CTR-RR-IP Controllers)
