Installation, Operation, and Specifications > Removing and Installing Components > Front Module Removal

Front Module Removal

To remove a front module from a Selenio frame, follow this procedure:

1. Open the front panel.
2. Grasp the extractor handle on the module, pulling down slightly.
3. Using the handle, slide the module out of its slot.

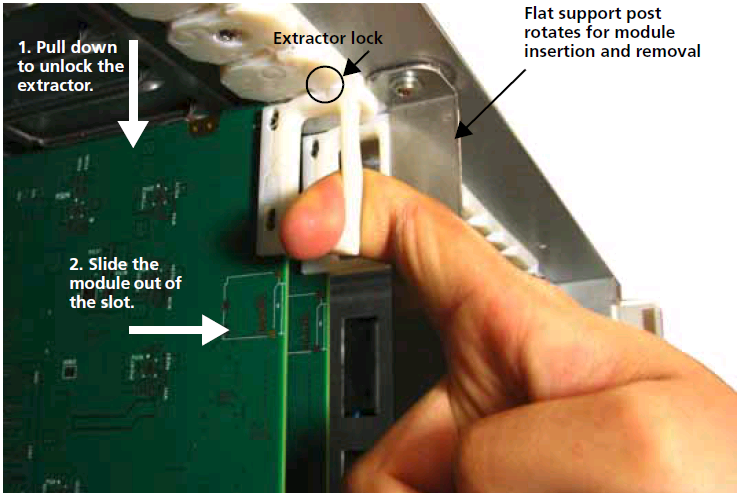

Removing a Front Module
