GPI In/Out

One GPI In/Out module provides two GPI inputs and two GPI outputs, configurable by the control system software. The GPI outputs ware relay-controlled contact closures that are in turn controlled by the active control module. GPI outputs are normally opened when the Selenio Frame is powered up and one resource module is operational and active. GPI outputs are closed when the system is powered down.

GPI In/Out Specifications

Item

Specifications

Connector

2 X 3 position screw terminal (Keystone 8739)

Input signal level

3.3 V logic (5 V tolerant) with pull-up

Output
  • Max switching voltage: 125 VAC, 110 VDC
  • Max switching current: 0.3 A

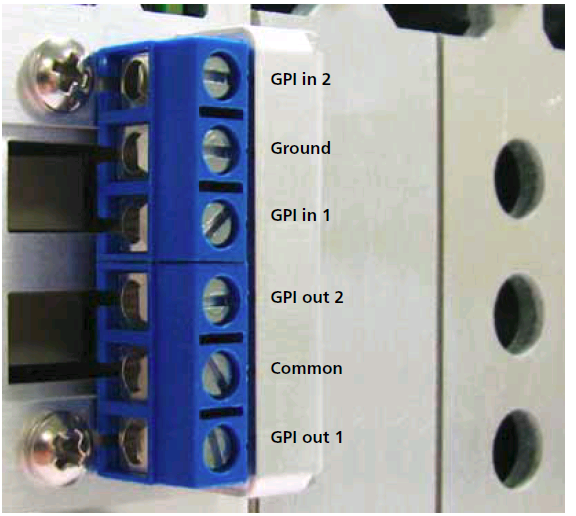

GPI In/Out Pinouts
