Important Points
- Before you begin cleaning, always inspect the fiber connections.
- Inspect and clean both fiber ends every time you make a connection.
- Keep a protective cap on unplugged fiber connectors.
- Do not touch the end of a fiber.
- Store unused protective caps in a clean resealable container, located nearby for easy access.
- Do not reuse cleaning tissues or swabs.
- Do not allow alcohol or another wet cleaning agent to dry on a fiber end.
- Never touch the dispenser tip of an alcohol bottle or any clean portion of a tissue or swab.
- Use care when handling the fiber; do not twist or pull.
- Keep your cleaning fluids away from open flame or spark.

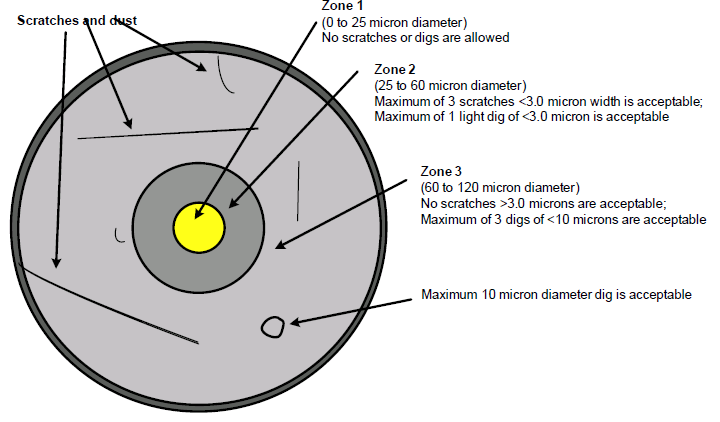

The figure below describes the acceptable limits of defects in a fiber connection.

Fiber Optic Cross-Section
|
