Using the Connection Manager

To launch the Connections manager, follow these steps:

1. On the Configuration screen, select Frame—Controller.
2. If any other configuration interface is open, click Close.
3. From the Frame Control Panel page, click Connections, and then click Manage Connections.

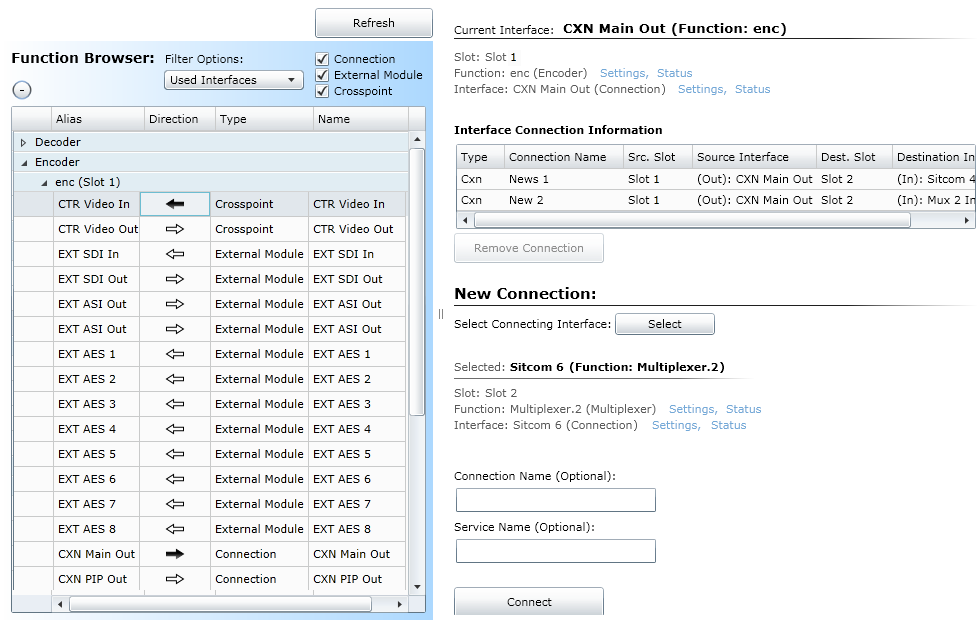

   Connections Manager

If one of the following conditions exists, then the web browser may temporarily not be able to query the connections.

• A module has been removed or reseated in the frame
• A new module has been placed in the frame
• This is the first time the frame has been started
• The configuration of the protection router has changed
• Parameters affecting the connections on a module have been changed
• The frame has disabled connection management and view in order to update connection information

When the frame is ready to launch the connections interface, a message will appear and you can click the button to open the Connections Manager.

To close the Connections Manager and return to the Control Panel, click Close.
