Fan Removal and Installation

Follow these steps to remove a defective fan module, and replace it with a new SELOPT-FAN spare. This procedure can take place while the frame is operating.

  1. Remove the bottom two screws on each side of the control panel, and then remove the safety grille (see below).
  2. Locate the defective fan, and then remove its two mounting screws.
  3. Gently slide the fan module forward out of its alignment pins.
  4. Grip the white power connector and gently pull it down, out of its base.
  5. Replace the defective fan, following steps 1 to 4 in reverse.

    Align the white connector with the slot in the frame before inserting. Ensure the connector tab on the fan is facing into the frame, and the wires are tucked under the metal edge (see the images below).

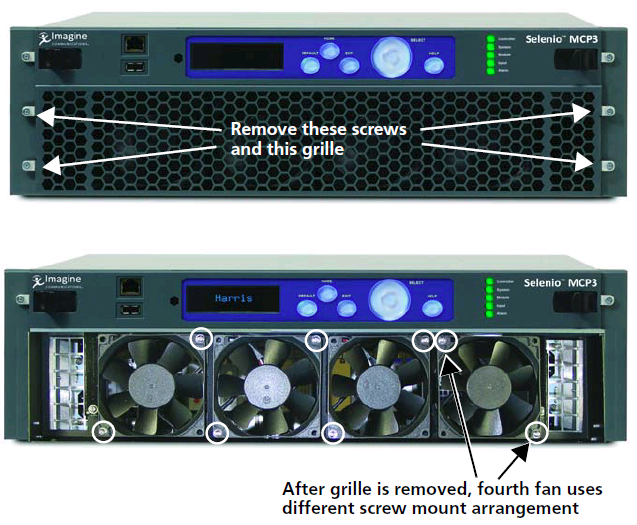

Safety Grille Removal

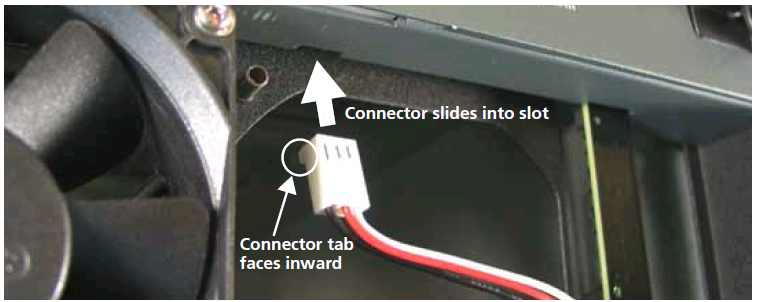

Fan Wiring Connection

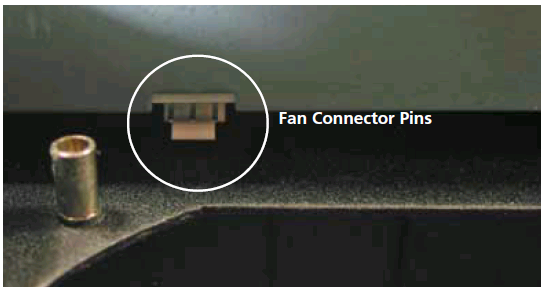

Location of Connector Pins

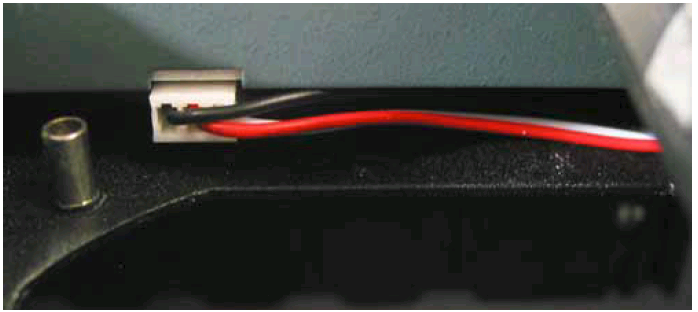

Wires Tucked Under Metal Edge
