Controller Video IP Submodule

A video IP ("mezzanine") submodule is required if data Ethernet connections are used by the frame, or if application modules must communicate with each other internally. If this submodule was not installed as part of the ordered frame package, the SELOPT-VIDEO-IP can be installed separately. (When a secondary controller module is in use, a secondary submodule will also be necessary for complete redundancy.)

Follow these steps to install the submodule:

1. Turn off power to the frame.

   The frame cannot be operated during this procedure.

2. Remove the controller module.
3. Position the video IP submodule over the rear portion of the controller module (below), being careful to align the card-to-card multipin connector.

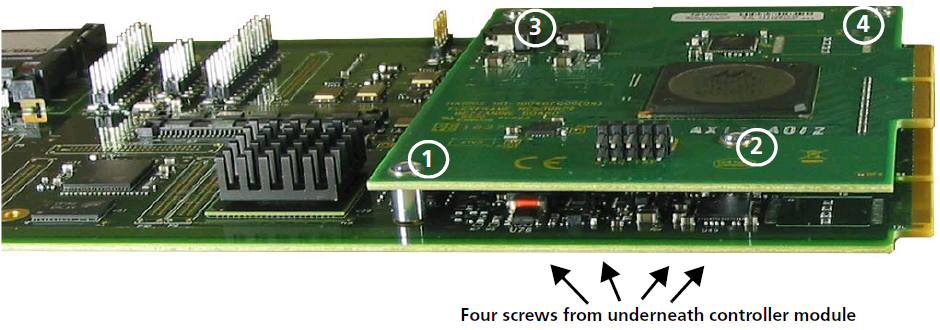

Installation of Video IP Submodule
